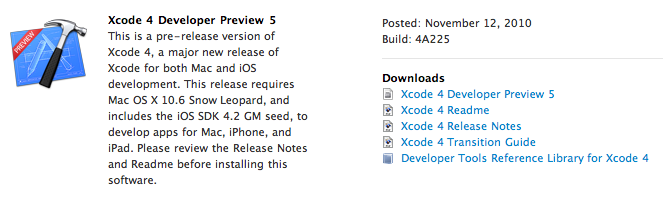

E’ stata appena rilasciata algli sviluppatori la preview numero 5 della versione 4 di Xcode. Questa preview introduce alcune nuove funzioni disponibili e risolve dei precedenti bug, ma non ci sono grosse novità da sottolineare.
Queste le parole con cui la Apple presenta la relase:
Questa preview introduce nuove funzioni e miglioramenti per i tab, pannello editor e notifiche. Queste funzioni sono studiate per scalare la singola interfaccia di Xcode 4 in modo da utilizzare al meglio l’area dello schermo, dal MacBook Air di 11″ sino ai Mac dotati di monitor multipli. Si prega di sperimentare queste nuove funzioni per vedere come Xcode può velocizzare le attività di sviluppo ogni giorno.
Oltre questi miglioramenti che coinvolgono la parte grafica della suite di sviluppo made-in-Apple, troviamo anche una completa lista di miglioramenti che riporto qui in basso ma che per evidenti problemi di lunghezza non traduco!
New Features
General
The build action in the scheme dialog allows you to choose which targets should be built for each scheme action. 8025069
Each scheme action specifies the build configuration to use when Xcode performs that action as part of a build. Setting up a scheme with scheme actions that use particular build configurations allows you to, for example, set up a scheme that runs the product with the Debug configuration but profiles it with the Release configuration. 8090845
The Build and Archive command archives the products of the targets selected in the active scheme for archival, including their dSYM files. You submit your products to iTunes Connect using these archives. You can also use them to symbolicate crash logs. 7696041
The post-action scripts of archive scheme actions have access to information about the just-built archive in their environment:
ARCHIVE_PATH: The path to the archive. ARCHIVE_PRODUCTS_PATH: The installation location for the archived product.ARCHIVE_DSYMS_PATH: The path to the product’s dSYM files. 8423449 Xcode detects and enforces implicit build dependencies between targets when you build a scheme.
You can turn this off per scheme in a scheme’s build action. 7879553
When the active scheme is a unit-test scheme, clicking Run in the toolbar produces an unknown error dialog.
To run unit tests, choose Product > Test. 8642393
Fix-it is not supported in iOS application projects created using the new project dialog. The iOS project templates have the compiler set to LLVM-GCC, which does not support Fix-it.
After creating an iOS project, set the compiler to LLVM 2.0. 8607314
Editing Core Data Models You can create NSManagedObject subclasses from entities in a Core Data data model. 7484772
Refactoring The Extract transformation is supported. 7711619
Compiling: LLVM 2.0
Blocks: Goto statements within blocks are allowed when the target is within the block. 7549164
Objective-C: Fixes bugs in exception handling present in LLVM 1.5. 8160285
You can declare instance variables in class implementations and extensions (iOS and 64-bit Mac OS X). 7538989
Analyzing OpenGL ES Performance The OpenGL ES Performance Detective identifies graphics bottlenecks in your iOS applications. It is
located in <Xcode>/Applications/Graphics Tools. 8208239 Runs of the OpenGL ES Analyzer instrument can be saved in Instruments traces. 7993423 The OpenGL ES Analyzer instrument supports extended filtering of the OpenGL ES trace. 7976717
The OpenGL ES Analyzer instrument provides single-frame navigation, which allows you to focus all instruments on a specific OpenGL frame, and to step backward and forward in the trace frame by frame. 8552970
Enhancements
General
You can access the values of the build settings of the target being built through environment variables and launch arguments. When you create custom executables (by changing the value of the Executable setting in Run and Profile scheme actions), you can specify the target against which
to expand the environment variables and launch arguments. 7546808
Editing Nib Files
Xcode suggests key path completions in the bindings inspector as you type. To take advantage of this feature, specify the class of object being managed by your controller in the attributes inspector.
Xcode uses the project’s symbol index to generate the key path completions. 8176168
Editing Source Code
There’s an additional gesture to jump to a symbol definition in the source editor: holding down the Command key. When you hold down Command, Xcode represents the symbol under the pointer as a hyperlink; you can move the pointer between symbols until Xcode highlights the one you want to act on. You can then click the symbol to jump to its definition. Other modifies keys behave as expected. 8459719
Task Information and Alerts
The activity viewer presents more detailed information about scheme-related tasks, such as building a product. 7982481
Changes
Editing Nib Files
Hidden views are invisible in the Interface Builder canvas (they used to be partially visible in Interface Builder 3, part of Xcode 3).
To work with these views, select them in the jump bar or the outline view. 8059339
Building: xcodebuild The xcodebuild -activetarget option is no longer supported. 8361726
Resolved Issues
General
In General preferences, you can specify that Xcode ask you where to open a file you click or double-click while holding down an modifier key in a navigator. 8476034
Xcode automatically creates schemes for all targets in a project when you open an Xcode 3.x– based project. It doesn’t skip targets that other targets depend on.
You can delete or hide schemes you don’t need in the manage schemes dialog. 8016676
Setting General preferences > Build Location > “Shared subfolder” to an absolute path doesn’t generate an assertion failure when opening projects. 8368913
Editing Nib Files
Many performance problems with making connections are resolved. In particular, the performance of connecting to the First Responder has been drastically improved. 8280101
You can create an Interface Builder–to–source connection even the target source code is folded. 8472539
Editing Core Data Model Files
When you create NSManagedObject subclasses from entities in a Core Data data model, Xcode ask for confirmation before overwriting existing files. 8506607
Editing Source Code
Breakpoints and message bubbles appear in the source editor even when code is folded above them. 7192871
Compiling: LLVM 2.0 C++: Several bugs related to using blocks are fixed. 6182276
Analyzing OpenGL ES Performance API statistics in the OpenGL ES Analyzer instrument are computed correctly. 8549379
Help and Documentation Content
The list of help topics in a help book appears, as expected, when accessing help books in the documentation organizer. 8430699
New Issues
Comparing Versions of a File
After you create a branch and switch to it in the repositories organizer, using the commit dialog or the version editor causes an assertion failure.
Restart Xcode after creating a branch and switching to it. 8383245
Known Issues
General
Interface Builder files with explicit Xcode 3 file types open in the source editor instead of in Interface Builder.
Set the file type of the Interface Builder file in the Identity and Type inspector to “Default,” deselect it in the project navigator, and select it again. 8028406
The task log viewer is empty when you select the last build task of a project or workspace in the log navigator and the viewer is set to show only recent operations.
Set the task log viewer to show all operations. 8350930
Editing Nib Files
Xcode cannot edit Mac OS X–type Interface Builder documents comprised of objects from frameworks other than AppKit.
You can compile and run these documents, however. 7470836 Refactoring: Xcode does not refactor Cocoa bindings. 8423815
Searching
Search navigator: Xcode may crash in the replace preview dialog of the search navigator when all the found instances are selected and you click Replace. 8091532
Refactoring
Xcode does not create a snapshot of your workspace before performing a refactoring transformation.
Create manual snapshots before performing refactoring transformations. 7816256
Editing nib files: The Rename transformation may not work properly action methods in Interface Builder documents when the action’s target is the first responder or the method is declared in a category, protocol, or a superclass of the given class. 8500272
Source Control and Snapshots Xcode doesn’t recognize SCP-based URLs for Git repositories in the Repositories organizer.
Use the SSH-based URLs. For example, instead of [email protected]:/myrepositoryname.git usessh://[email protected]/myrepositoryname.git. 8044145
Building Xcode doesn’t use a new build location after you change General preferences > Build Location. Close and reopen open projects and workspaces after changing the build location. 7965261
Help and Documentation Content
These help books are not listed on the Xcode Application Help page (Help > Xcode Application Help): Interface Builder Help, Task and Session Log Viewer Help, Symbol Navigator Help, and Xcode Concepts.
Search for these titles in the Help menu or in the search navigator in the documentation organizer. 8481951,8518802
[Via 9to5Mac]
